4800 series square end narrow stile brass furniture
4801-32CP illustrated
A slim line rectangular brass plate that adds style to your choice of lever.
Standard Finishes
Chrome Plate CP
Polished Brass PB
Satin Chrome SC

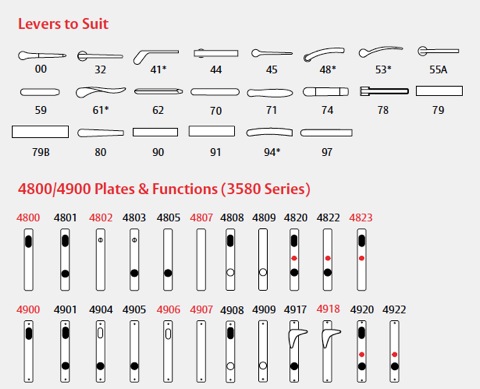

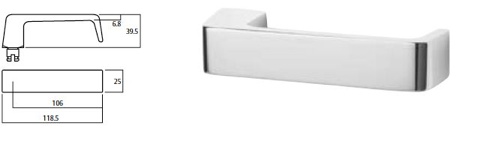

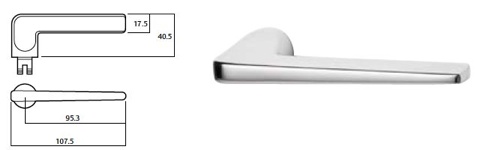

Lever options:
4801-32CP illustrated
A slim line rectangular brass plate that adds style to your choice of lever.
- Designed for use with the Lockwood 3580 series mortice locks
- Plates are not handed; lever may be reversed by removing stop screw, except those denoted by *. Specify the handing of those levers when ordering.
- Plate dimensions 185mm x 26mm x 11.5mm.
- Roses are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.
- Door thickness - external plates are supplied with fixing screws to suit door thickness between 32 and 50mm
- Extended spindles & fixing screws available to special order.
Standard Finishes
Chrome Plate CP
Polished Brass PB
Satin Chrome SC
Lever options:

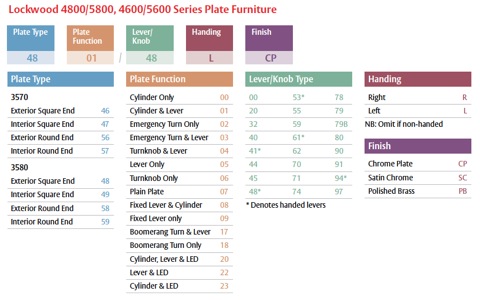

Ordering
