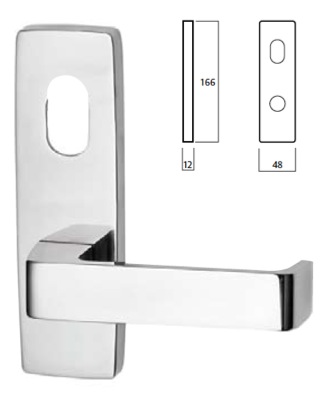

1801-90CP illustrated

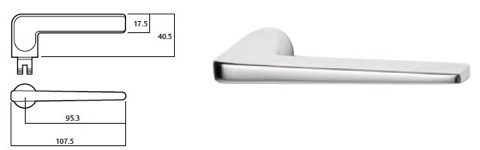

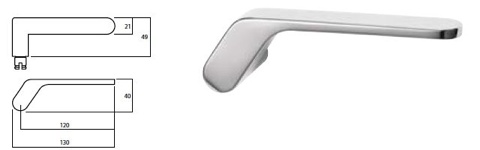

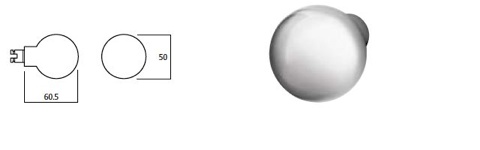

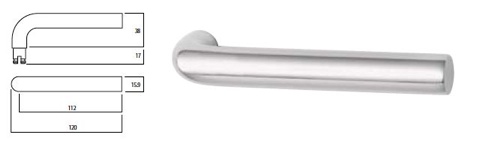

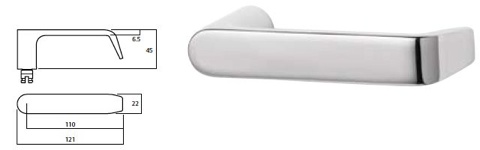

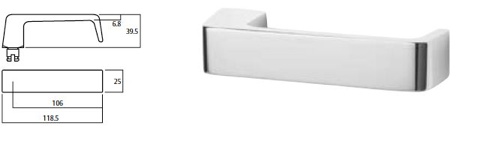

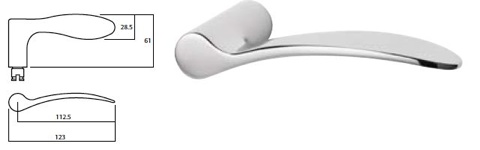

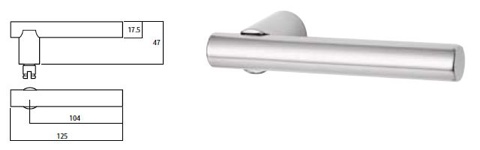

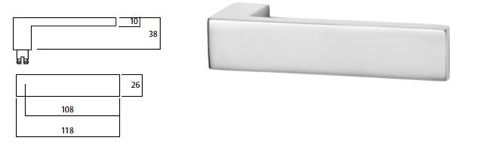

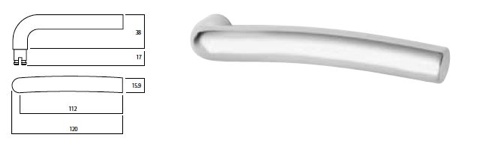

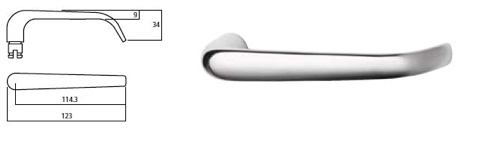

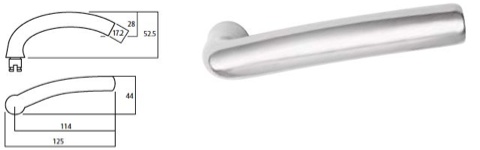

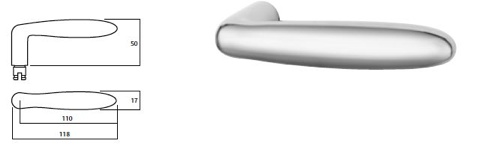

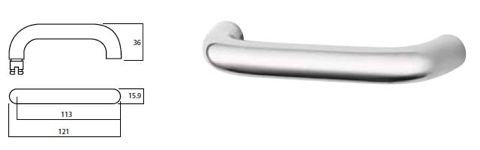

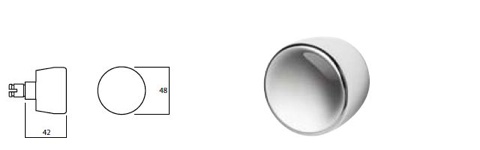

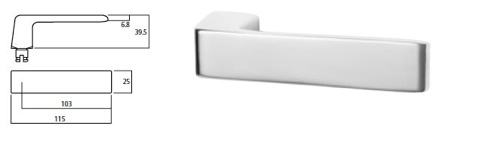

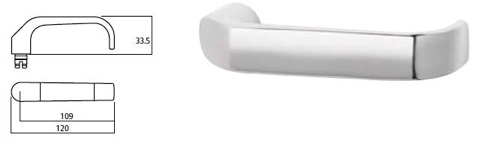

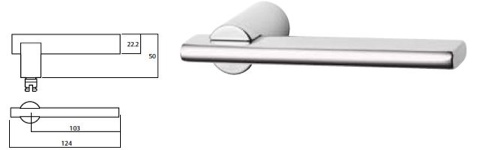

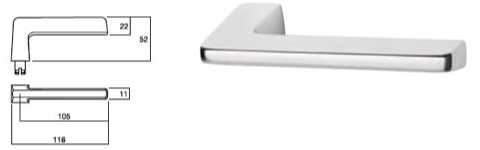

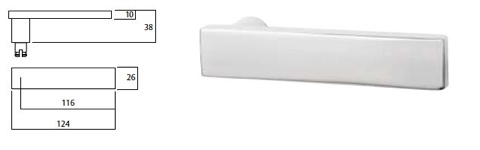

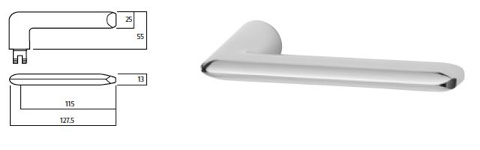

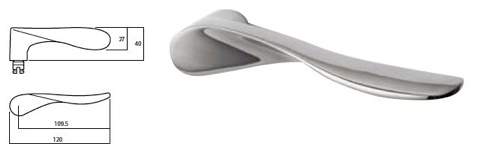

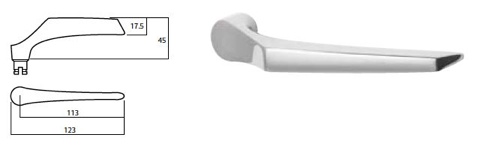

Lever & knob options:

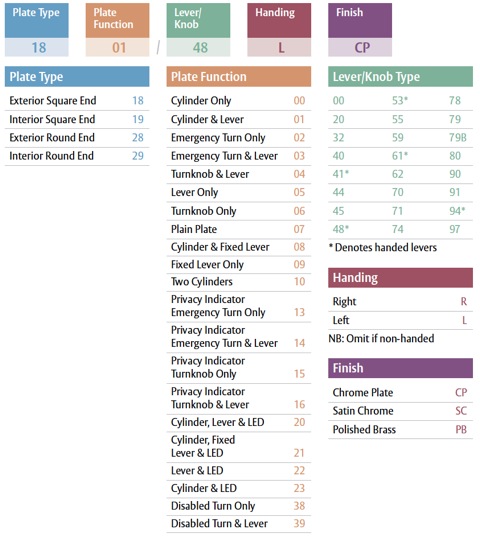

Ordering
1801-90CP illustrated
Lever & knob options:
Ordering
1800 series square end brass plate furniture
For a smart look choose this rectangular plate with bevelled edges and corners. It features concealed fixing on the outside plate.- Designed for use with the Lockwood 3570 series mortice locks and latches.
- Plates are not handed; lever may be reversed by removing stop screw, except those denoted by *.
- Dimensions 166 x 48 x 12mm.
- Fixing plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.
- Door thickness - external plates are supplied with fixing screws to suit door thickness between 32 and 50mm.
- Extended spindles & fixing screws available to special order.
Standard Finishes
Chrome Plate CP
Polished Brass PB
Satin Chrome SC
