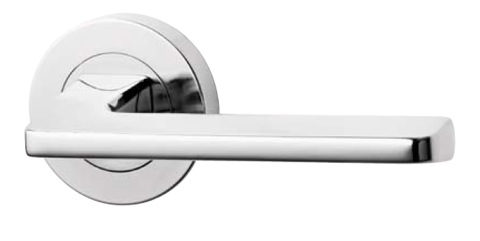

1220-1221-78CP illustrated

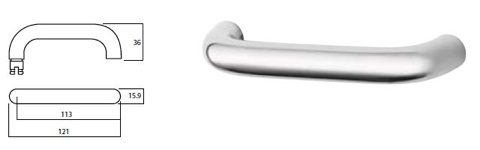

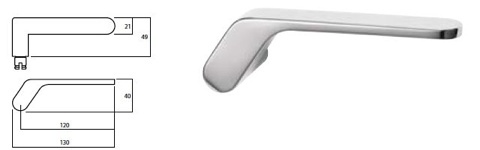

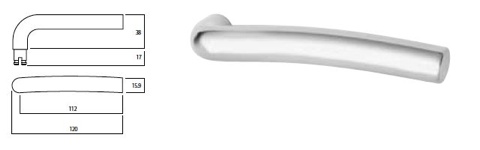

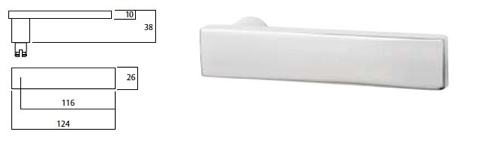

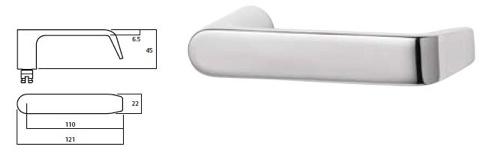

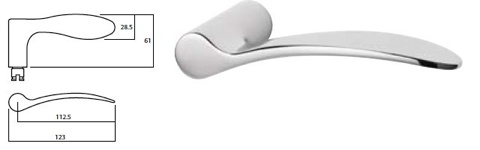

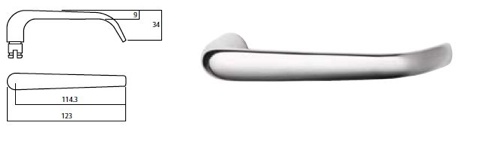

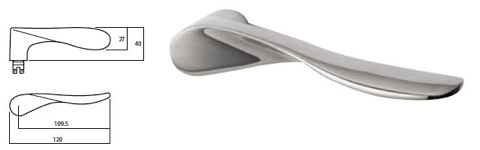

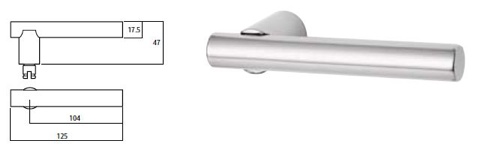

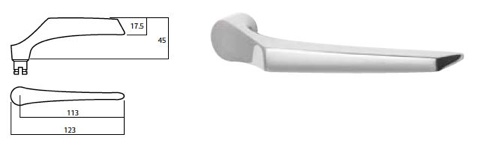

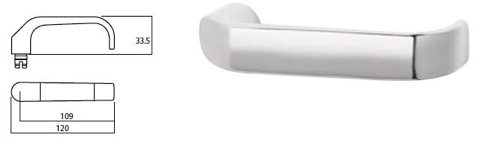

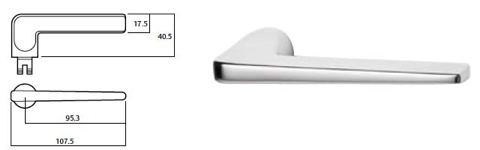

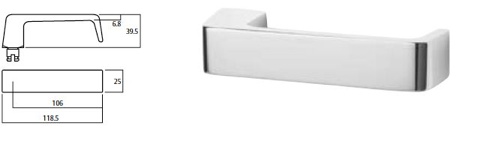

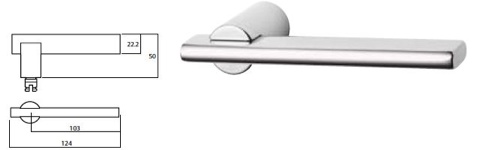

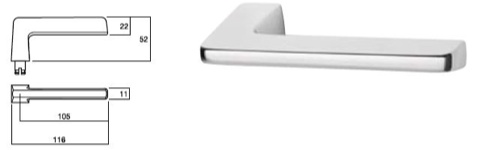

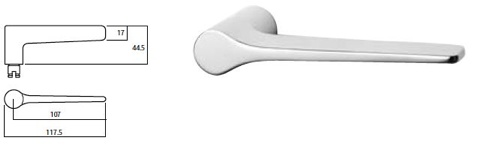

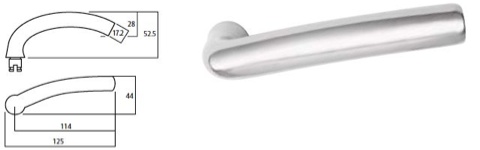

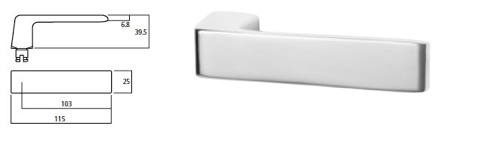

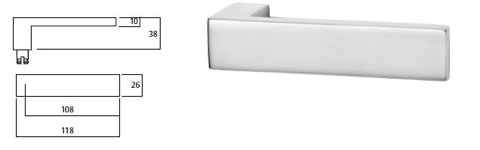

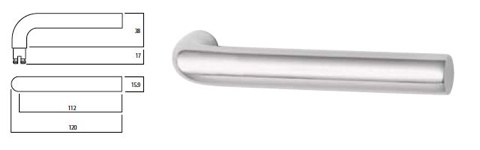

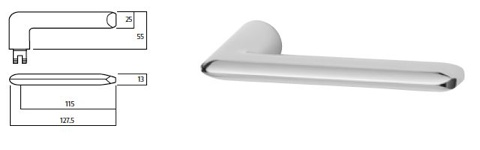

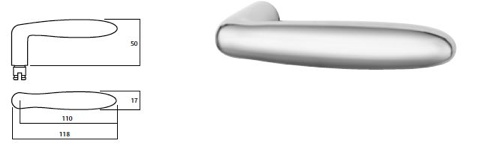

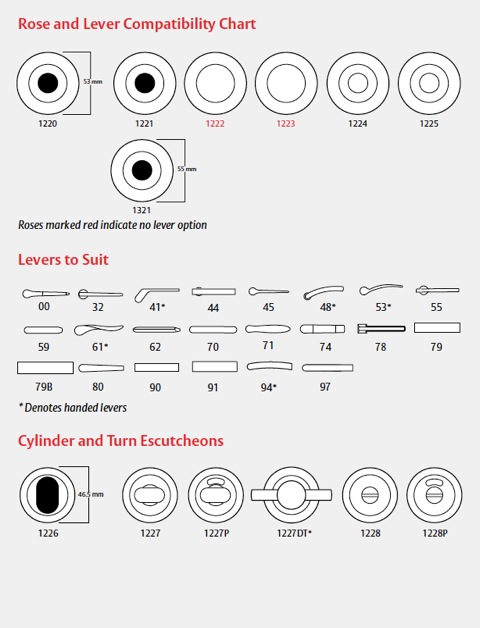

Lever options:

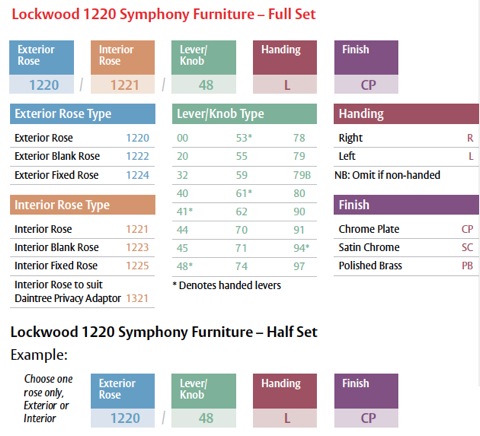

Ordering
1220-1221-78CP illustrated
Lever options:
Ordering
1220 series round rose brass furniture
Simple and versatile, this elegantly styled round brass rose furniture features concealed fixing.- Designed for use with the Lockwood 3570 series mortice locks and latches as well as the A5250 tubular latch
- Plates are not handed; lever may be reversed by removing stop screw, except those denoted by *. Specify the handing of those levers when ordering.
- Rose dimensions 53mm diameter x 11.6mm.
- Roses are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.
- Door thickness - external plates are supplied with fixing screws to suit door thickness between 32 and 50mm (for 3570 series locks) or 33mm and 50mm (for A5250 latches).
- Extended spindles & fixing screws available to special order.
Standard Finishes
Chrome Plate CP
Polished Brass PB
Satin Chrome SC
