CAM Action Door Closer Range

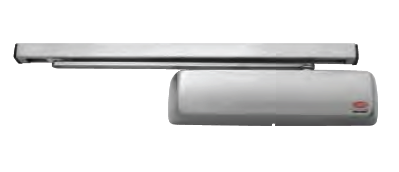

2516 CAM Action Door Closer with Slide Arm
Fire Rated
The Lockwood 2516 CAM Action Door Closer has successfully been fire rated on fire door assemblies in accordance with Australian Standard AS 1905.1 - 2005: Fire-resistant doorsets.
Part Number
2516DASSS Satin Stainless Steel
2516DAPB Gold Plated
2516DASIL Silver
The Lockwood 2516 CAM Action Door Closer has successfully been fire rated on fire door assemblies in accordance with Australian Standard AS 1905.1 - 2005: Fire-resistant doorsets.
Part Number
2516DASSS Satin Stainless Steel
2516DAPB Gold Plated
2516DASIL Silver
Pull Side - Standard Mounting
Non hold-open permits door opening to 170°, and 160° when opening damper is used. When hold-open device is installed, the opening angle (hold-open) can be set to a maximum of 120°.
Non hold-open permits door opening to 170°, and 160° when opening damper is used. When hold-open device is installed, the opening angle (hold-open) can be set to a maximum of 120°.
Push Side - Standard Mounting
Non hold-open permits door opening to 120°, and 120° when opening damper is used. When hold-open device is installed, the opening angle (hold-open) can be set to a maximum of 120°.
Non hold-open permits door opening to 120°, and 120° when opening damper is used. When hold-open device is installed, the opening angle (hold-open) can be set to a maximum of 120°.
Push Side - Over-Door Mounting
Non hold-open permits door opening to 120°, and 120° when opening damper is used.When hold-open device is installed, the opening angle (hold-open) can be set to a maximum of 120°.
Non hold-open permits door opening to 120°, and 120° when opening damper is used.When hold-open device is installed, the opening angle (hold-open) can be set to a maximum of 120°.
Pull Side - Over-Door Mounting
Non hold-open permits door opening to 170°, and 160° when opening damper is used.When hold-open device is installed, the opening angle (hold-open) can be set to a minimum of 120°.
Non hold-open permits door opening to 170°, and 160° when opening damper is used.When hold-open device is installed, the opening angle (hold-open) can be set to a minimum of 120°.
Door closers
Products included in this document.
CAM Action Door Closer Range
Lockwood 2516 CAM Action Door Closer with Slide Arm
Lockwood 2514 CAM Action Door Closer with Slide Arm
Lockwood 2557 Series Door Closer
Accessories – 2516 and 2514 Series
Hydraulic Door Closers
7726 Door Closer Series
7726 Slide Arm Door Closer Series
7714 Door Closer Series
7714 Slide Arm Door Closer Series
7724 Door Closer Series
7724 Slide Arm Door Closer Series
3024 Door Closer Series
2024 Door Closer Series
Standard Hold Open Arm
Lockwood Electromechanical Door Control Systems
7726 Series
9024 Series Concealed In-Door Closer
Lockwood Door Stays
8001C Concealed Door Stay
8001S Surface Mounted Door Stay
