Fire Rated
The Lockwood 2516 CAM Action Door Closer has successfully been fire rated on fire door assemblies in accordance with Australian Standard AS 1905.1 - 2005: Fire-resistant doorsets.
Part Number
2516DASSS Satin Stainless Steel
2516DAPB Gold Plated
2516DASIL Silver
The Lockwood 2516 CAM Action Door Closer has successfully been fire rated on fire door assemblies in accordance with Australian Standard AS 1905.1 - 2005: Fire-resistant doorsets.
Part Number
2516DASSS Satin Stainless Steel
2516DAPB Gold Plated
2516DASIL Silver

CAM Action Door Closer Range
The Lockwood 2516 CAM Action Door Closer is a premium, high quality door closing device. When opening a door fitted with a Lockwood 2516 CAM Action Door Closer, the force required is less than that of a rack and pinion type door closer, and continues to decrease through the opening arc. This aesthetically appealing, narrow profile CAM Action Door Closer is suited for public and commercial applications where children, the elderly and the disabled are likely to be using the door. For disabled toilet applications where a breakout feature is required, the double action of the mechanism allows the door to be operated in the opposite direction for easy access into the room.
The Lockwood 2516 is light to open, but its adjustable closing force is high enough for heavy duty applications. The 2516 is non-handed and therefore very easy to install – either on the inside of the door or on the door frame.
Features:

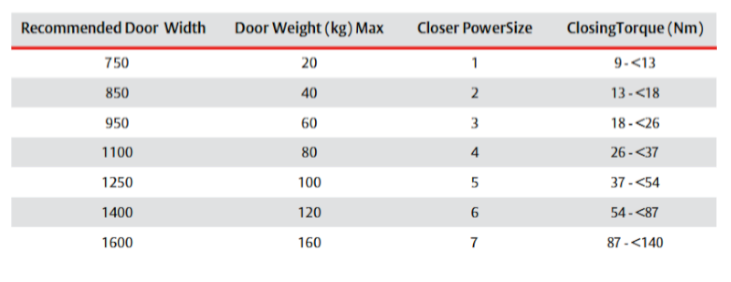

• Adjustable spring power from size EN 1 to 6
• Delayed Action DA (Standard)
• Easily adjustable arm height
• Adjustable closing speed
• Adjustable latching speed
• Back check (BC) (Built in)
• Cast aluminium body manufactured from high-performance silicon alloy
• Two pressure relief valves are a standard feature to protect against abuse
• High efficiency: 70 – 80%
• Standard finish Satin stainless steel SSS; Polished Brass PB; Silver SIL
• One Model (2516): Covers most applications. Right hand & left hand applications and pull-side/push side applications
Accessories (additional parts)
• Hold open 2516-152 (not for use on fire rated door sets)
• Opening damper 2516-153
• Angle plate 2516-104SIL
• Mounting plate 2516-180SIL

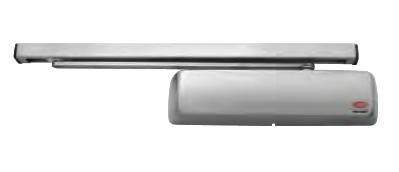

Lockwood 2516 CAM Action Door Closer with Slide Arm
The Lockwood 2516 CAM Action Door Closer is a premium, high quality door closing device. When opening a door fitted with a Lockwood 2516 CAM Action Door Closer, the force required is less than that of a rack and pinion type door closer, and continues to decrease through the opening arc. This aesthetically appealing, narrow profile CAM Action Door Closer is suited for public and commercial applications where children, the elderly and the disabled are likely to be using the door. For disabled toilet applications where a breakout feature is required, the double action of the mechanism allows the door to be operated in the opposite direction for easy access into the room.
The Lockwood 2516 is light to open, but its adjustable closing force is high enough for heavy duty applications. The 2516 is non-handed and therefore very easy to install – either on the inside of the door or on the door frame.
Features:
• Adjustable spring power from size EN 1 to 6
• Delayed Action DA (Standard)
• Easily adjustable arm height
• Adjustable closing speed
• Adjustable latching speed
• Back check (BC) (Built in)
• Cast aluminium body manufactured from high-performance silicon alloy
• Two pressure relief valves are a standard feature to protect against abuse
• High efficiency: 70 – 80%
• Standard finish Satin stainless steel SSS; Polished Brass PB; Silver SIL
• One Model (2516): Covers most applications. Right hand & left hand applications and pull-side/push side applications
Accessories (additional parts)
• Hold open 2516-152 (not for use on fire rated door sets)
• Opening damper 2516-153
• Angle plate 2516-104SIL
• Mounting plate 2516-180SIL

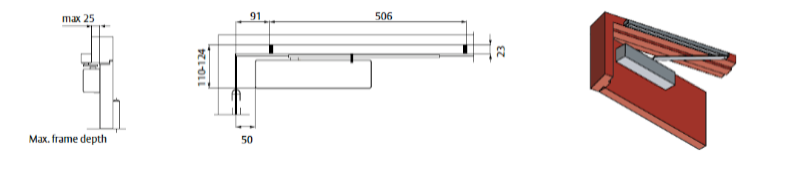

Pull Side - Standard Mounting
Non hold-open permits door opening to 170°, and 160° when opening damper is used. When hold-open device is installed, the opening angle (hold-open) can be set to a maximum of 120°.
Non hold-open permits door opening to 170°, and 160° when opening damper is used. When hold-open device is installed, the opening angle (hold-open) can be set to a maximum of 120°.

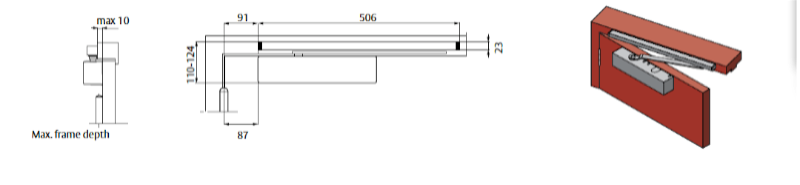

Push Side - Standard Mounting
Non hold-open permits door opening to 120°, and 120° when opening damper is used. When hold-open device is installed, the opening angle (hold-open) can be set to a maximum of 120°.
Non hold-open permits door opening to 120°, and 120° when opening damper is used. When hold-open device is installed, the opening angle (hold-open) can be set to a maximum of 120°.

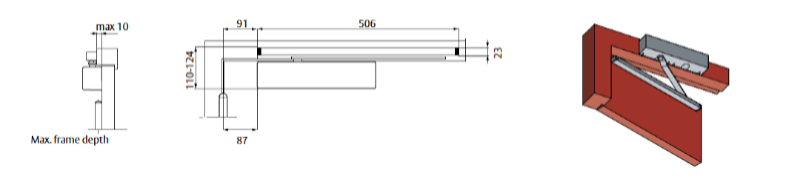

Push Side - Over-Door Mounting
Non hold-open permits door opening to 120°, and 120° when opening damper is used.When hold-open device is installed, the opening angle (hold-open) can be set to a maximum of 120°.
Non hold-open permits door opening to 120°, and 120° when opening damper is used.When hold-open device is installed, the opening angle (hold-open) can be set to a maximum of 120°.

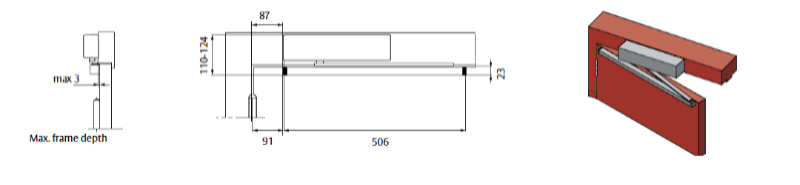

Pull Side - Over-Door Mounting
Non hold-open permits door opening to 170°, and 160° when opening damper is used.When hold-open device is installed, the opening angle (hold-open) can be set to a minimum of 120°.
Non hold-open permits door opening to 170°, and 160° when opening damper is used.When hold-open device is installed, the opening angle (hold-open) can be set to a minimum of 120°.

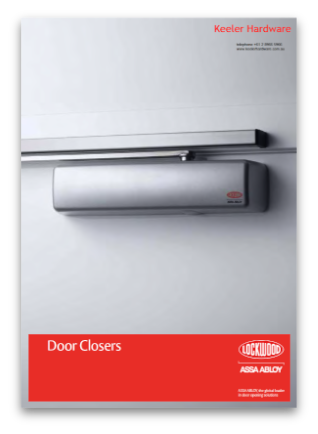

Door closers
